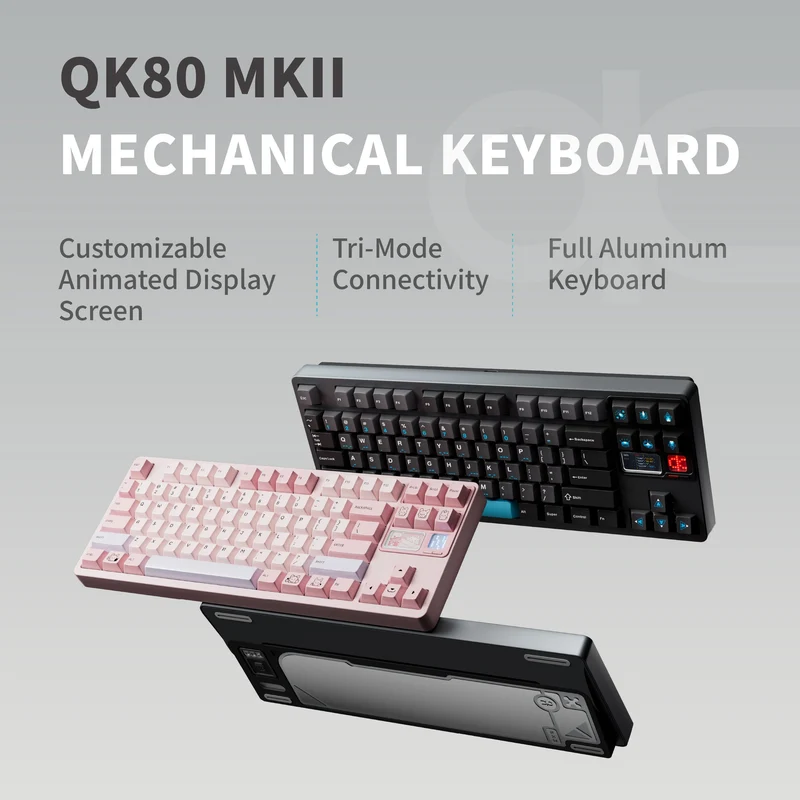

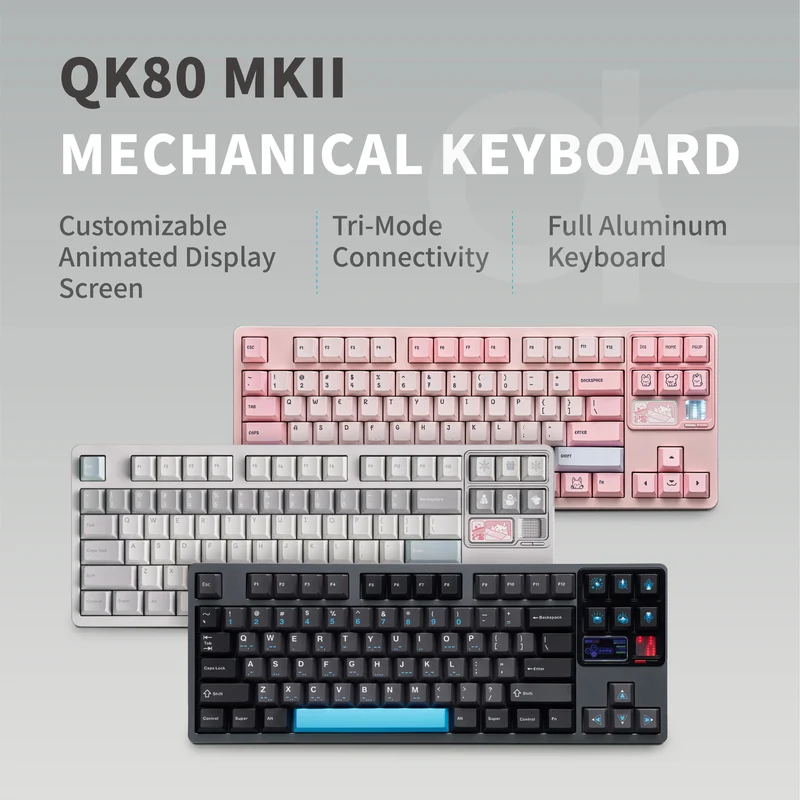

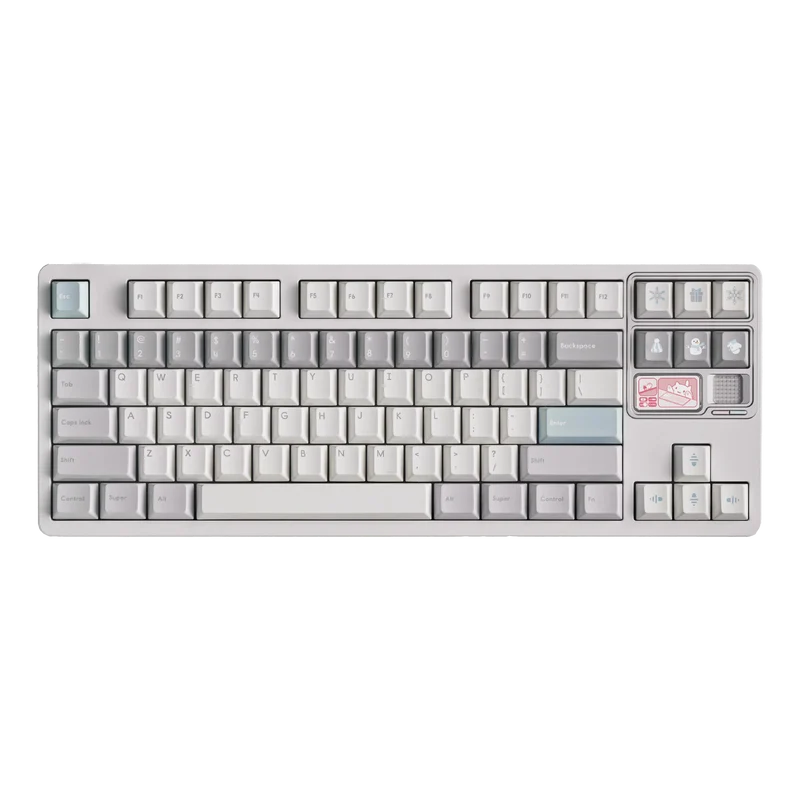

Qwertykeys QK80Mk2 Prebuilt Wireless Mechanical Keyboard (Spray-coated White)

QK80 Mk2 Custom Mechanical Keyboard

The QK80 Mk2 brings Qwertykeys' second-generation design language to a highly customisable 80% mechanical keyboard. Featuring tri-mode connectivity, an interactive LCD display and dot-matrix LED panel, Leaf Spring mounting system, ball-catch quick-disassembly design and a refined aluminium chassis.

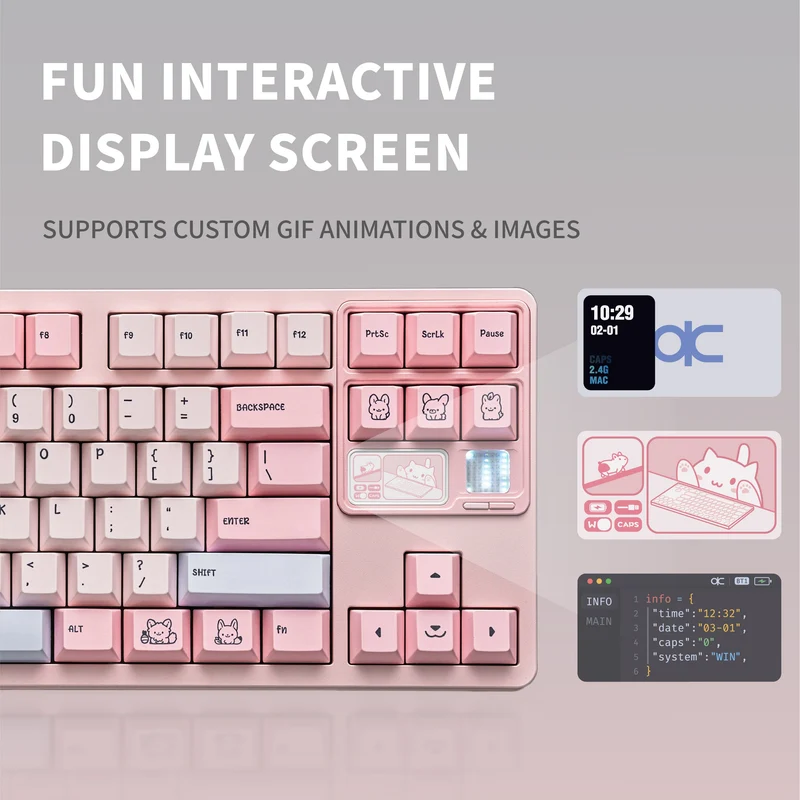

Customisable Display

QK80 Mk2 features an integrated LCD screen and dot-matrix LED panel. Three built-in themes - Dynamic, Code and Meow - allow the display to complement different keyboard setups. Custom animations can also be added to both displays.

The display provides access to useful functions including date and time settings, RGB lighting controls and sleep settings. A built-in Flappy Bird mini-game adds an extra interactive touch.

Refined Back Design

The QK80 Mk2 further refines its internal and external structure. By separating the battery compartment from the bottom case, the integrity of the sound chamber is preserved to help optimise acoustic performance.

The redesigned rear weight combines contrasting surface colours and textures to create the distinctive QK Mk2 design language.

Magnetic Dongle Storage

The magnetic badge on the underside doubles as the cover for the integrated USB receiver storage compartment. Simply remove the badge to access or store the 2.4GHz wireless dongle.

Leaf Spring Mounting System

The QK80 Mk2 introduces Leaf Spring mounting and a ball-catch easy-disassembly system to the QK series. The positioning of the leaf springs and acoustic chamber has been carefully designed to optimise acoustic performance and provide consistent typing feedback.

Ball-Catch Quick-Disassembly Design

The ball-catch mechanism makes opening and assembling the keyboard easier, providing convenient access to the internal components without a traditional screw-heavy disassembly process.

Tri-Mode Connectivity

• USB-C wired connection
• Bluetooth wireless connection
• 2.4GHz wireless connection

Switch between wired and wireless connectivity to suit different desktop setups and devices.

QK Customised VIA Web Configurator

All QK80 Mk2 PCBs support QK's customised VIA web configurator for keymapping and screen customisation, providing additional control over the keyboard and its advanced display functions.

Flexible Layout Support

• ANSI and ISO layout compatible
• Compatible with WK and WKL cases
• Supports 6.25u and 7u spacebars
• Multiple plate material options
• Multiple hot-swap PCB configurations

Dual 4000mAh Batteries

The QK80 Mk2 keyboard case includes two pre-installed 4000mAh batteries to support wireless connectivity and the integrated display functions.

Key Features

• 80% custom mechanical keyboard
• Integrated LCD display
• Dot-matrix LED panel
• Customisable screen animations
• Dynamic, Code and Meow built-in display themes
• Leaf Spring mounting system
• Ball-catch quick-disassembly mechanism
• Magnetic 2.4GHz dongle storage compartment
• USB-C, Bluetooth and 2.4GHz connectivity
• Hot-swappable PCB
• ANSI and ISO layout support
• QK customised VIA web configurator support
• Two pre-installed 4000mAh batteries

Specifications

• Layout: 80%
• Typing Angle: 7 degrees
• Front Height: 19mm
• Dimensions: 137 x 362mm
• Weight Before Build: Approx. 1.8kg
• Weight After Build: Approx. 2.2kg
• Connectivity: USB-C / Bluetooth / 2.4GHz
• Layout Compatibility: ANSI / ISO
• Spacebar Support: 6.25u / 7u
• Configuration Software: QK Customised VIA Web Configurator
• Battery: 2 x 4000mAh

PCB Options

Tri-Mode Flex-Cut Hot-Swap PCB with Per-Key RGB

• 1.2mm PCB thickness
• Per-key RGB lighting
• Hot-swappable
• USB-C / Bluetooth / 2.4GHz

Tri-Mode Flex-Cut Hot-Swap PCB

• 1.2mm PCB thickness
• No per-key RGB
• Hot-swappable
• USB-C / Bluetooth / 2.4GHz

Tri-Mode Non-Flex-Cut Hot-Swap PCB

• 1.6mm PCB thickness
• No per-key RGB
• Hot-swappable
• USB-C / Bluetooth / 2.4GHz

Package Contents

• QK80 Mk2 Keyboard Case
• Pre-installed Screen Module and Screen Daughterboard
• 2 x Pre-installed 4000mAh Batteries
• 4 x Pre-installed Rubber Feet
• Pre-installed PCB Daughterboard with Magnetic Connector
• 6 x Pre-installed Leaf Springs
• PCB

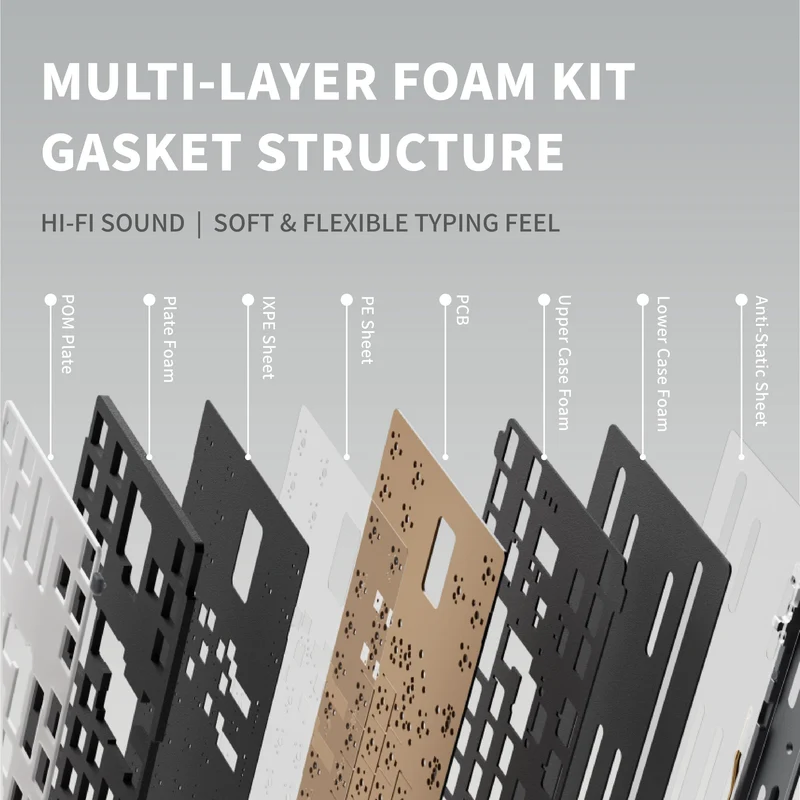

• IXPE Sheet
• PCB Foam
• Plate
• Case Foam and Anti-Static Film
• 2.4GHz Dongle
• Silicone Gaskets
• Backup Screen Ribbon Cable
• Backup Case Corner Protector
• Backup Screws and Rubber Feet
• Stabilisers
• Keyboard Protective Case
• Switch and Keycap Puller
• Screwdriver
• USB-C Cable

Note: Exact included PCB and plate depend on the selected product configuration. The PET sheet is included only with the per-key RGB PCB configuration.

The Qwertykeys QK80 Mk2 Custom Mechanical Keyboard features wireless support, quick-detachable construction, RGB lighting options, ISO layout support and a customisable display. It combines a leaf-spring mounting system with a ball-catch mechanism for convenient assembly and consistent typing feedback.

Key Features

• Customisable Display: Features three built-in themes – Dynamic, Code and Meow – with support for customised animations on both the screen and dot-matrix display.
• Built-In Display Functions: Supports date and time settings, RGB lighting control, sleep settings and a built-in Flappy Bird mini-game.
• Wireless Support: All PCB options support USB-C, Bluetooth and 2.4GHz connectivity.
• Leaf-Spring Mount: Designed to provide bouncier typing feedback and enhanced acoustic performance.
• Ball-Catch Mechanism: Allows quick and convenient keyboard disassembly without traditional case screws.
• Magnetic Dongle Storage: The rear badge also functions as a magnetic cover for the 2.4GHz USB dongle compartment.
• ANSI & ISO Support: Compatible with both ANSI and ISO layouts.
• WK & WKL Compatibility: PCB options work with both WK and WKL cases.
• Custom VIA Web Configurator: Uses QK's customised VIA web configurator for key mapping and screen customisation.

Specifications

Typing Angle	7°
Front Height	19mm
Dimensions	137 x 362mm
Weight	Approx. 1.8kg before build / 2.2kg after build
Connectivity	USB-C / Bluetooth / 2.4GHz Wireless
Layout Compatibility	ANSI / ISO
Case Compatibility	WK / WKL
Spacebar Support	6.25u / 7u
Battery	2 x 4000mAh Batteries
Configurator	QK Custom VIA Web Configurator

PCB Options

• Tri-Mode Flex-Cut Hotswap PCB with Per-Key RGB: 1.2mm thick with per-key RGB.
• Tri-Mode Flex-Cut Hotswap PCB: 1.2mm thick without per-key RGB.
• Tri-Mode Non-Flex-Cut Hotswap PCB: 1.6mm thick without per-key RGB.

Package Contents

• Keyboard Case
• Pre-Installed Screen Module and Screen Daughterboard
• 2 x Pre-Installed 4000mAh Batteries
• 4 x Pre-Installed Rubber Feet
• Pre-Installed PCB Daughterboard with Magnetic Connector
• 6 x Pre-Installed Leaf Springs
• PCB of Your Choice
• PET Sheet – Included Only with Per-Key RGB PCB
• IXPE Sheet
• PCB Foam
• Plate of Your Choice
• Case Foam and Anti-Static Film
• 2.4GHz Dongle
• Silicone Gaskets
• Backup Screen Ribbon Cable
• Backup Case Corner Protector
• Backup Screws and Rubber Feet

Included Free Gifts

• Stabilizers
• Keyboard Protective Case
• Switch and Keycap Puller
• Screwdriver
• USB-C Cable
